| Harley-Davidson's profilation of this bike |
| The VRSCB model starts with the idea that with 115 horses running directly beneath your saddle, you don’t need much more. So we left the muscle intact and turned the brightness down. You get the same genetics that make a V-Rod® a V-Rod. |
|
General information |
|
Motorcycle name
|

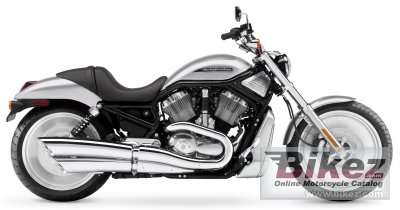

Harley-Davidson VRSCB V-Rod |
|
Model year
|
2005 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1131.0 ccm (69.01 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6600 RPM |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Chrome dual slash-cut |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
180/55-ZR18 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
275.0 kg (606.3 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2435 mm (95.9 inches) |
|
Ground clearance
|
141 mm (5.6 inches) |
|
Wheelbase
|
1710 mm (67.3 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry pearl, chopper blue pearl, racing orange, anodised aluminum |
