General information |
|
Model
|

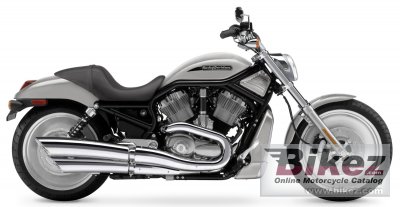

Harley-Davidson VRSCB V-Rod |
|
Year
|
2004 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1131.0 ccm (69.01 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
115.0 HP (83.9 kW)) @ 8250 RPM |
|
Torque
|
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6600 RPM |
|
Top speed
|
219.0 km/h (136.1 mph) |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Sequential, single fire non-waste spark, coil on plug |
|
Lubrication system
|
Gerotor, wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Nine plate wet pressure fed with integral compensation |
|
Fuel consumption
|
17.00 litres/100 km (5.9 km/l or 13.84 mpg) |
|
Greenhouse gases
|
394.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
49mm telescopic forks |
|
Front wheel travel
|
100 mm (3.9 inches) |
|
Rear suspension
|
Dual coil over adjustable shock |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
180/55-ZR18 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
275.0 kg (606.3 pounds) |
|
Weight incl. oil, gas, etc
|
280.0 kg (617.3 pounds) |
|
Power/weight ratio
|
0.4182 HP/kg |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2435 mm (95.9 inches) |
|
Ground clearance
|
141 mm (5.6 inches) |
|
Wheelbase
|
1710 mm (67.3 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Oil capacity
|
4.20 litres (4.44 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, anodised aluminum, racing orange
|
|
Starter
|
Electric |
|
Electrical
|
Sealed,maintenance-free battery. |
|
Comments
|
Polished, two-tone silver and black engine; hydroformed perimeter frame; black frame, calipers, brake lines, rear shock springs and hand controls; 49 mm forks raked out at 38°; 660 mm seat height; adjustable handlebars; 14-liter fuel tank under seat; aerodynamic, reflector optic headlight; radiator shroud with twin vortex air scoops
|
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Coolant
|
2.00 litres (0.53 US gallons) |
|
Spark plugs
|
NGK DCPR8E, NGK DCPR8EIX |
|
Idle speed
|
1200 +/- 50 RPM |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
38 PSI (2.6 Bar or 260 kPa) |
|
Fork tube size
|
49 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
