General information |
|
Motorcycle name
|

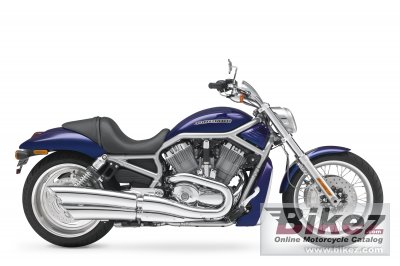

Harley-Davidson VRSCAW V-Rod |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1250.0 ccm (76.28 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
105.0 x 72.0 mm (4.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet, A and S (Assist and Slip) |
|
Exhaust system
|
Chrome, slash-cut exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel perimeter upper frame with hydroformed main rails; and bolt-on lower frame rails, MIG welded |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
Wide, 49mm custom fork |
|
Front wheel travel
|
102 mm (4.0 inches) |
|
Rear suspension
|
Preload adjustable |
|
Rear wheel travel
|
102 mm (4.0 inches) |
|
Front tire
|
120/70-ZR19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Double disc. 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
292.0 kg (643.7 pounds) |
|
Seat height
|
705 mm (27.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2455 mm (96.7 inches) |
|
Ground clearance
|
160 mm (6.3 inches) |
|
Wheelbase
|
1715 mm (67.5 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Oil capacity
|
4.40 litres (4.65 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl, Black Ice Pearl, Red Hot Sunglo, Flame Blue Pearl/Brilliant Silver Pearl |
|
Starter
|
Electric |
|
Comments
|
Two-tone silver and charcoal powder-coated engine with chrome covers; Sport
front fender with chrome brace supports; Low-profile rear fender; 240mm
wide rear tyre; Chrome, headlamp visor; Slipper clutch; Forward-mounted rider
footpegs; Standard passenger footpegs; Stainless steel, pull-back handlebars;
Two-piece, two-up textured vinyl seat; 4-piston front and rear caliper Brembo®
brakes with dual front rotor; Wide, 49mm custom forks; ABS as standard |
