General information |
|
Model name
|

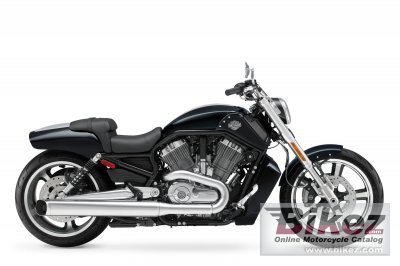

Harley-Davidson V-Rod Muscle |
|
Model year
|
2013 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15149. Euro 18445. UK £ 13995. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1250.1 ccm (76.28 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Liquid-cooled, Revolution®, 60° V-Twin |
|
Torque
|
118.0 Nm (12.0 kgf-m or 87.0 ft.lbs) @ 6750 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
105.0 x 72.0 mm (4.1 x 2.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Gear, 117/64 ratio primary drive |
|
Fuel consumption
|
6.36 litres/100 km (15.7 km/l or 36.98 mpg) |
|
Greenhouse gases
|
147.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Satin chrome, dual side exhaust system with turnouts |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
142 mm (5.6 inches) |
|
Front tire
|
MT90-ZR19 |
|
Rear tire
|
MU85-R18 |
|
Front brakes
|
Single disc. 4-piston |
|
Rear brakes
|
Single disc. 2-piston |
|
Wheels
|
Black, 5-Spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
292.1 kg (644.0 pounds) |
|
Weight incl. oil, gas, etc
|
307.1 kg (677.0 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2357 mm (92.8 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1702 mm (67.0 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
White Hot Denim, Vivid Black, Candy Orange, Midnight Pearl/Brilliant Silver Pearl |
|
Instruments
|
Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer |
|
Light
|
High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings |
