Harley-Davidson Tri Glide Ultra Classic 20132013 Harley-Davidson Tri Glide Ultra Classic specifications, pictures, reviews and rating |

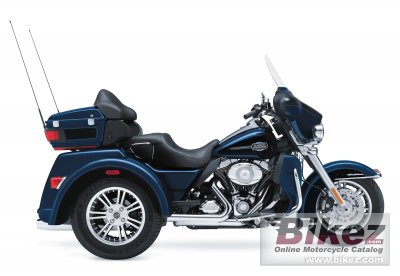

2013 Harley-Davidson Tri Glide Ultra Classic. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The three-wheel pioneer designed to be the ultimate badass touring machine. Every inch is integrated for comfort, cargo and confidence. From the smooth, classically designed lines to the front-to-rear matching paint, the Tri Glide® Ultra Classic® model has the bloodlines of a true Harley-Davidson® motorcycle through and through. |
| General information | |
|---|---|
| Model | Harley-Davidson Tri Glide Ultra Classic |
| Year | 2013 |
| Category | Touring |
| Price as new | US$ 30999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1688.0 ccm (103.00 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled, Twin Cam 103™ |
| Torque | 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Chain, 34/46 ratio primary drive |
| Fuel consumption | 6.19 litres/100 km (16.2 km/l or 38.00 mpg) |
| Greenhouse gases | 143.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, square-section backbone with twin downtubes |
| Rake (fork angle) | 26.0° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | 41.3 mm telescopic, triple-circuit damping, |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Air-adjustable |
| Rear wheel travel | 76 mm (3.0 inches) |
| Front tire | 130/60-21 |
| Rear tire | 205/65-15 |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 229 mm (9.0 inches) |
| Wheels | Black, 7-spoke cast aluminium |
| Physical measures and capacities | |
| Dry weight | 524.8 kg (1,157.0 pounds) |
| Weight incl. oil, gas, etc | 545.0 kg (1,201.5 pounds) |
| Seat height | 688 mm (27.1 inches) If adjustable, lowest setting. |
| Overall length | 2687 mm (105.8 inches) |
| Overall width | 1389 mm (54.7 inches) |
| Ground clearance | 119 mm (4.7 inches) |
| Wheelbase | 1692 mm (66.6 inches) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Anniversary Vintage Bronze/Anniversary Vintage Black, Midnight Pearl/Brilliant Silver Pearl, Big Blue Pearl/Vivid Black, Ember Red Sunglo, Vivid Black |
| Starter | Electric |
| Instruments | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
| Light | High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled |
| Carrying capacity | Trunk and top box |
| Comments | Trike. Windshield. CVO is HD´s Custom Vehicle Operation. |
