General information |
|
Model
|

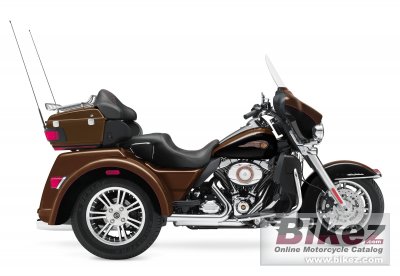

Harley-Davidson Tri Glide Ultra Classic 110th Anniversary |
|
Model year
|
2013 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 33499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1688.0 ccm (103.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 103™ |
|
Torque
|
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 34/46 ratio primary drive |
|
Fuel consumption
|
6.19 litres/100 km (16.2 km/l or 38.00 mpg) |
|
Greenhouse gases
|
143.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, 2-1-2 dual exhaust with tapered mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front tire
|
130/80-17 |
|
Rear tire
|
205/65-P15 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Black, 7-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
524.8 kg (1,157.0 pounds) |
|
Seat height
|
688 mm (27.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2687 mm (105.8 inches) |
|
Ground clearance
|
119 mm (4.7 inches) |
|
Wheelbase
|
1692 mm (66.6 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Anniversary Vintage Bronze/Anniversary Vintage Black |
|
Starter
|
Electric |
|
Instruments
|
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
|
Light
|
High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled |
|
Carrying capacity
|
Trunk. Top box. |
|
Comments
|
Special Edition celebrating HD´s 110th Anniversary. Windshield. Trike |
