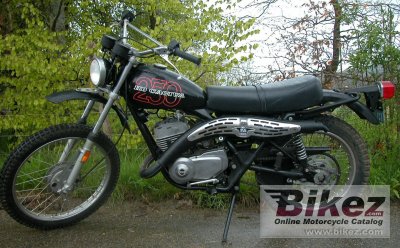

Harley-Davidson SX 250 19771977 Harley-Davidson SX 250 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Harley-Davidson SX 250 |
| Year | 1977 |
| Category | Cross / motocross |
| Rating | 2.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 243.0 ccm (14.83 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 20.0 HP (14.6 kW)) @ 7000 RPM |
| Top speed | 115.0 km/h (71.5 mph) |
| Compression | 10.3:1 |
| Bore x stroke | 72.0 x 59.6 mm (2.8 x 2.3 inches) |
| Fuel control | Port control |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 3.25-19 |
| Rear tire | 4.00-18 |
| Front brakes | Expanding brake |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 125.0 kg (275.6 pounds) |
| Fuel capacity | 10.50 litres (2.77 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 77 Harley-Davidson SX 250 discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 1977 Harley-Davidson SX 250 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Harley-Davidson bike | |
Touring capabilities for the 1977 Harley-Davidson SX 250:  (45.5 out of 100)Click here for complete rating. |
|
