General information |
Motorcycle name
|

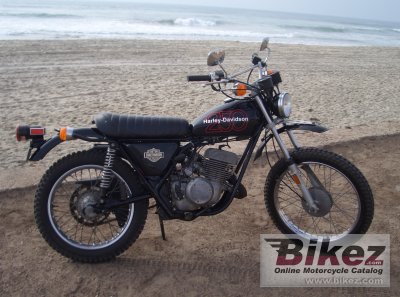

Harley-Davidson SX 250 |
Year
|
1976 |
Category
|
Sport |
Rating
|
3.1 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
243.0 ccm (14.83 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power
|
20.0 HP (14.6 kW)) @ 7000 RPM |
Top speed
|
115.0 km/h (71.5 mph) |
Compression
|
10.3:1 |
Bore x stroke
|
72.0 x 59.6 mm (2.8 x 2.3 inches) |
Fuel control
|
Port control |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front tire
|
3.25-19 |
Rear tire
|
4.00-18 |
Front brakes
|
Expanding brake |
Rear brakes
|
Expanding brake |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
125.0 kg (275.6 pounds) |
Fuel capacity
|
10.50 litres (2.77 US gallons) |
Other specifications |
