General information |
|
Motorcycle name
|

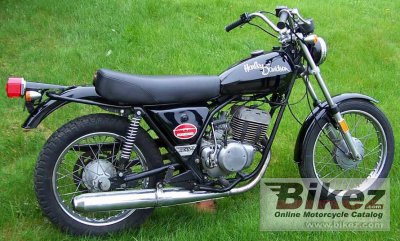

Harley-Davidson SS 250 |
|
Model year
|
1976 |
|
Category
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
213.0 ccm (13.00 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
20.0 HP (14.6 kW)) @ 7000 RPM |
|
Top speed
|
124.0 km/h (77.1 mph) |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
72.0 x 59.6 mm (2.8 x 2.3 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Port control |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
3.25-19 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake |
|
Physical measures and capacities |
|
Dry weight
|
129.0 kg (284.4 pounds) |
|
Weight incl. oil, gas, etc
|
129.0 kg (284.4 pounds) |
|
Power/weight ratio
|
0.1550 HP/kg |
|
Fuel capacity
|
10.50 litres (2.77 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 76 Harley-Davidson SS 250 discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Offroad capabilities for the 1976 Harley-Davidson SS 250:
 (63.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
