General information |
|
Model name
|

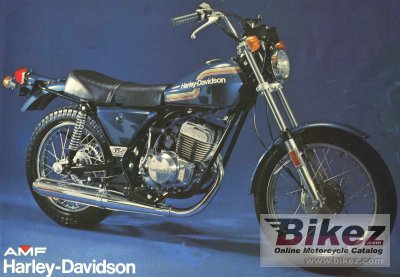

Harley-Davidson SS 175 |
|
Year
|
1976 |
|
Category
|
Classic |
|
Rating
|
3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
174.0 ccm (10.62 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
17.0 HP (12.4 kW)) @ 6750 RPM |
|
Top speed
|
115.0 km/h (71.5 mph) |
|
Compression
|
10.7:1 |
|
Bore x stroke
|
61.0 x 59.6 mm (2.4 x 2.3 inches) |
|
Fuel control
|
Port control |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
3.25-19 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Expanding brake |
|
Rear brakes
|
Expanding brake |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
127.0 kg (280.0 pounds) |
|
Fuel capacity
|
10.50 litres (2.77 US gallons) |
|
Other specifications |
