Harley-Davidson Sportster XL 883N Iron 883 20102010 Harley-Davidson Sportster XL 883N Iron 883 specifications, pictures, reviews and rating |

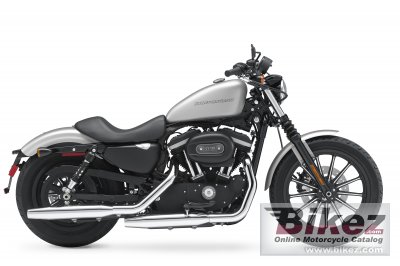

2010 Harley-Davidson Sportster XL 883N Iron 883. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The Iron 883™ pushes minimal Dark Custom styling to the edge with a V-Twin beat and gritty, old-school garage features. The Dollars 7,999 MSRP makes this model a great starting point for customization. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson Sportster XL 883N Iron 883 |
| Year | 2010 |
| Category | Custom / cruiser |
| Price as new | US$ 7999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 883.0 ccm (53.88 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Digital CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Exhaust system | Chrome, staggered, shorty exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel, tubular frame, circular sections, cast junctions |
| Rake (fork angle) | 29.6° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | 39mm fork |
| Front wheel travel | 92 mm (3.6 inches) |
| Rear suspension | Coil-over, preload dual adjustment |
| Rear wheel travel | 41 mm (1.6 inches) |
| Front tire | 100/90-19 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc. Dual piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single piston |
| Diameter | 292 mm (11.5 inches) |
| Wheels | Black 13-spoke, cast aluminium wheels. |
| Physical measures and capacities | |
| Dry weight | 251.0 kg (553.4 pounds) |
| Weight incl. oil, gas, etc | 256.3 kg (565.0 pounds) |
| Seat height | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Overall length | 2245 mm (88.4 inches) |
| Ground clearance | 120 mm (4.7 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Oil capacity | 2.50 litres (2.64 US quarts) |
| Other specifications | |
| Color options | Black Denim, Brilliant Silver Denim |
| Starter | Electric |
| Comments | Black powder-coated Evolution™ 883cc engine with black treatment covers. Chopped rear fender and solo seat. Black headlamp with black headlamp visor. Black low-rise drag style handlebars. Stop-turn-tail lights. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson Sportster XL 883N Iron 883 discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
