Harley-Davidson Sportster XL883N Iron 833 20112011 Harley-Davidson Sportster XL883N Iron 833 specifications, pictures, reviews and rating |

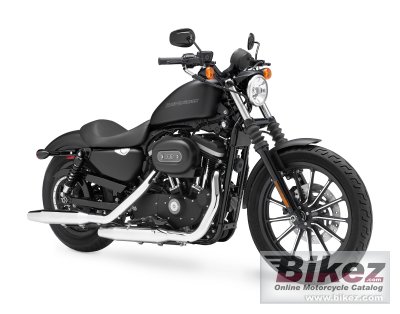

2011 Harley-Davidson Sportster XL883N Iron 833. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Born on the gritty dirt tracks and drag strips of the 1950s, the Harley-Davidson® Sportster® represents the uninhibited essence of motorcycling. |
| General information | |
|---|---|
| Model | Harley-Davidson Sportster XL883N Iron 833 |
| Model year | 2011 |
| Category | Custom / cruiser |
| Price as new | US$ 7999. Euro 8120. UK £ 5990. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 883.3 ccm (53.90 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
| Torque | 75.0 Nm (7.6 kgf-m or 55.3 ft.lbs) @ 3500 RPM |
| Compression | 8.9:1 |
| Bore x stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection |
| Fuel control | Overhead Valves (OHV) |
| Lubrication system | Dry-sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Driveline | Primary Drive Chain, 57/34 ratio. Final Drive Belt, 68/29 ratio |
| Fuel consumption | 4.09 litres/100 km (24.4 km/l or 57.51 mpg) |
| Greenhouse gases | 94.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, staggered shorty exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel, tubular frame; circular sections; cast junctions |
| Rake (fork angle) | 31.0° |
| Trail | 145 mm (5.7 inches) |
| Front suspension | 39 mm fork |
| Front wheel travel | 92 mm (3.6 inches) |
| Rear suspension | Coil-over, preload dual-adjustable |
| Rear wheel travel | 41 mm (1.6 inches) |
| Front tire | 100/90-19 |
| Rear tire | 150/80-B16 |
| Front brakes | Single disc. Patented, uniform expansion rotors. Dual-piston. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Patented, uniform expansion rotors. Single-piston. |
| Diameter | 260 mm (10.2 inches) |
| Wheels | Black, 13-Spoke Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 248.6 kg (548.0 pounds) |
| Weight incl. oil, gas, etc | 256.3 kg (565.0 pounds) |
| Seat height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Overall height | 1107 mm (43.6 inches) |
| Overall length | 2179 mm (85.8 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 99 mm (3.9 inches) |
| Wheelbase | 1519 mm (59.8 inches) |
| Fuel capacity | 12.49 litres (3.30 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Chrome Yellow, Black Denim |
| Starter | Electric |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, tim |
| Electrical | Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
| Light | 55-watt low beam, 60-watt high beam |
| Factory warranty | 24 months, unlimited mileage. (US) |
