| General information |
|---|

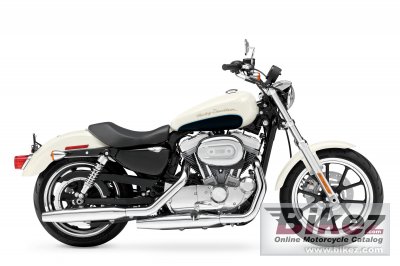

| Model: | Harley-Davidson Sportster SuperLow |
| Year: | 2013 |
| Category: | Custom / cruiser |
| Price as new: | US$ 8099. Euro 8595. UK £ 6695. MSRP depends on country, taxes, accessories, etc. |
| Rating: | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 883.3 ccm (53.90 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Air-cooled, Evolution® |
| Torque: | 74.6 Nm (7.6 kgf-m or 55.0 ft.lbs) @ 3500 RPM |
| Compression: | 8.9:1 |
| Bore x stroke: | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system: | Dry-sump |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Fuel consumption: | 4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
| Greenhouse gases: | 107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome, staggered, shorty exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel, tubular frame; circular sections; cast junctions |
| Rake (fork angle): | 31.1° |
| Trail: | 145 mm (5.7 inches) |
| Front suspension: | 39 mm Showa fork |
| Rear suspension: | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. |
| Front tyre: | 120/70-ZR18 |
| Rear tyre: | 150/60-ZR17 |
| Front brakes: | Single disc. Dual-piston |
| Diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. Single-piston rear |
| Diameter: | 260 mm (10.2 inches) |
| Wheels: | Black, Split 5-Spoke with Machined Rim |
| Physical measures and capacities |
|---|
| Dry weight: | 250.8 kg (553.0 pounds) |
| Weight incl. oil, gas, etc: | 259.9 kg (573.0 pounds) |
| Seat height: | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Overall length: | 2187 mm (86.1 inches) |
| Ground clearance: | 97 mm (3.8 inches) |
| Wheelbase: | 1506 mm (59.3 inches) |
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Oil capacity: | 2.60 litres (0.17 quarts) |
| Other specifications |
|---|
| Color options: | Vivid Black, Candy Orange/Beer Bottle, Birch White/Midnight Pearl, Big Blue Pearl. |
| Starter: | Electric |
| Instruments: | Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights |
| Light: | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) |
| Comments: | North America security system includes immobilizer, outside North America the security system includes immobilizer and siren. |
