General information |
|
Model
|

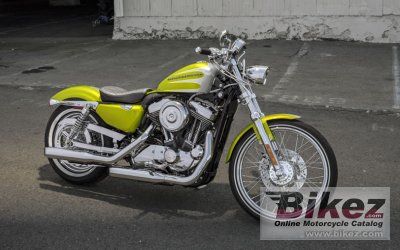

Harley-Davidson Sportster Seventy-Two Dark Custom |
|
Year
|
2013 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 10699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1201.3 ccm (73.30 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500 RPM |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
88.9 x 96.8 mm (3.5 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 57/38 Ratio |
|
Fuel consumption
|
4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
|
Greenhouse gases
|
113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered exhaust with slash-cut mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
30.1° |
|
Trail
|
135 mm (5.3 inches) |
|
Front tire
|
MH90-21 |
|
Rear tire
|
150/80-B16 |
|
Front brakes
|
Single disc. Dual-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Single-piston |
|
Diameter
|
260 mm (10.2 inches) |
|
Wheels
|
Black, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
247.2 kg (545.0 pounds) |
|
Weight incl. oil, gas, etc
|
251.7 kg (555.0 pounds) |
|
Seat height
|
676 mm (26.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2271 mm (89.4 inches) |
|
Ground clearance
|
119 mm (4.7 inches) |
|
Wheelbase
|
1524 mm (60.0 inches) |
|
Fuel capacity
|
7.95 litres (2.10 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Black Denim. |
|
Instruments
|
Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights |
|
Light
|
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) |
