2013 Harley-Davidson Sportster Iron 833

Harley-Davidson Sportster Iron 833 2013


2013 Harley-Davidson Sportster Iron 833 specifications, pictures, reviews and rating

2013 Harley-Davidson Sportster Iron 833

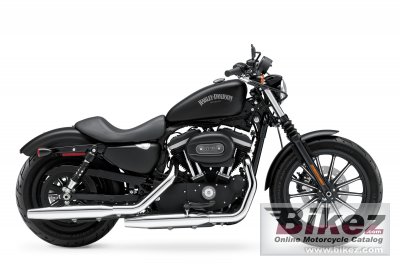

2013 Harley-Davidson Sportster Iron 833. Picture credits - Harley-Davidson. Submit more pictures.
Harley-Davidson's profilation of this bike
This blacked-out bruiser is a raw, aggressive throwback. No chrome, no apologies—just an authentic ride.

General information
Motorcycle name Harley-Davidson Sportster Iron 833
Year of manufacture 2013
Type Custom / cruiser
Price as newUS$ 7999. Euro 8535. UK £ 6695. MSRP depends on country, taxes, accessories, etc.
Rating 3.7  See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike.
Engine and transmission
Engine size 883.3 ccm (53.90 cubic inches)
Type of engine V2, four-stroke
Engine details Air-cooled, Evolution®
Torque 74.6 Nm (7.6 kgf-m or 55.0 ft.lbs) @ 3500 RPM
Compression 8.9:1
Bore x stroke 76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system Dry sump
Cooling system Air
Gearbox 6-speed
Transmission type Belt (final drive)
Clutch Multi-plate with diaphragm spring in oil bath
Fuel consumption 4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Greenhouse gases 107.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 30.5°
Trail 117 mm (4.6 inches)
Front tire 100/90-B19
Rear tire 150/80-B16
Front brakes Single disc
Rear brakes Single disc
Wheels Black, 13-Spoke Cast Aluminum
Physical measures and capacities
Dry weight 251.0 kg (553.3 pounds)
Weight incl. oil, gas, etc 260.0 kg (573.2 pounds)
Seat height 653 mm (25.7 inches) If adjustable, lowest setting.
Overall length 2179 mm (85.8 inches)
Ground clearance 99 mm (3.9 inches)
Wheelbase 1519 mm (59.8 inches)
Fuel capacity 12.49 litres (3.30 US gallons)
Oil capacity 2.60 litres (2.75 US quarts)
Other specifications
Color options Candy Orange, Black Denim, Big Blue Pearl
Instruments Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Light High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
