2013 Harley-Davidson Sportster Forty-Eight Dark Custom

Harley-Davidson Sportster Forty-Eight Dark Custom 2013


2013 Harley-Davidson Sportster Forty-Eight Dark Custom specifications, pictures, reviews and rating

2013 Harley-Davidson Sportster Forty-Eight Dark Custom

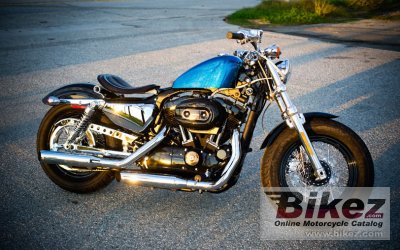

2013 Harley-Davidson Sportster Forty-Eight Dark Custom. Picture credits - Harley-Davidson. Submit more pictures.
Harley-Davidson's profilation of this bike
When the look is fast and smooth, details count and clutter doesn’t make the cut. We carefully crafted the rear end with retro-styled Stop-Turn-Tail lights to leave the fender surface clean and uncluttered for an authentically raw, custom look. And while the lamps may look old-school, it´s their new-school engineering that keeps things clean, packing stop, turn and running beams into each bullet.

General information
Motorcycle name Harley-Davidson Sportster Forty-Eight Dark Custom
Year model 2013
Type Custom / cruiser
Price as newUS$ 10599. MSRP depends on country, taxes, accessories, etc.
Rating Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Engine size 1201.3 ccm (73.30 cubic inches)
Type of engine V2, four-stroke
Engine details Air-cooled, Evolution®
Torque 107.1 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 4000 RPM
Compression 9.7:1
Bore x stroke 88.9 x 96.8 mm (3.5 x 3.8 inches)
Fuel system Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system Air
Gearbox 6-speed
Transmission type Belt (final drive)
Driveline Chain, 57/38 ratio primary drive
Fuel consumption 4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Greenhouse gases 113.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system Chrome, staggered shorty exhaust with dual slash-cut mufflers
Chassis, suspension, brakes and wheels
Rake (fork angle) 30.0°
Trail 107 mm (4.2 inches)
Front tire 130/90-B16
Rear tire 150/80-B16
Front brakes Single disc. Dual-piston
Rear brakes Single disc. Single-piston
Wheels Black, Laced Steel
Physical measures and capacities
Dry weight 250.8 kg (553.0 pounds)
Weight incl. oil, gas, etc 259.9 kg (573.0 pounds)
Seat height 660 mm (26.0 inches) If adjustable, lowest setting.
Overall length 2250 mm (88.6 inches)
Wheelbase 1519 mm (59.8 inches)
Fuel capacity 7.95 litres (2.10 US gallons)
Oil capacity 2.60 litres (2.75 US quarts)
Other specifications
Color options Black
Starter Electric
Instruments 4-inch Speedometer mounted low and integrated into handlebar clamp electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, LED indicator lights
Light High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
