Harley-Davidson Sportster Forty-Eight 20132013 Harley-Davidson Sportster Forty-Eight specifications, pictures, reviews and rating |

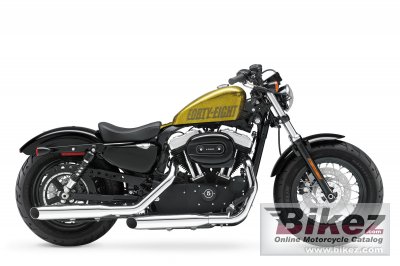

2013 Harley-Davidson Sportster Forty-Eight. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| With a fat front tire and steel peanut tank, this low-slung urban brawler is ready to rip through any scene. |
| General information | |
|---|---|
| Model name | Harley-Davidson Sportster Forty-Eight |
| Year model | 2013 |
| Type | Custom / cruiser |
| Price as new | US$ 10599. Euro 10795. UK £ 8895. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1201.3 ccm (73.30 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Air-cooled, Evolution® |
| Torque | 107.1 Nm (10.9 kgf-m or 79.0 ft.lbs) @ 4000 RPM |
| Compression | 9.7:1 |
| Bore x stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | 57/38 ratio |
| Fuel consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | E Type 9 |
| Chassis, suspension, brakes and wheels | |
| Trail | 107 mm (4.2 inches) |
| Front tire | 150/80-16 |
| Rear tire | 150/80-B16 |
| Front brakes | Single disc. Dual-piston |
| Rear brakes | Single disc. Single-piston |
| Wheels | Black, Laced Steel |
| Physical measures and capacities | |
| Dry weight | 250.8 kg (553.0 pounds) |
| Weight incl. oil, gas, etc | 259.9 kg (573.0 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length | 2250 mm (88.6 inches) |
| Ground clearance | 99 mm (3.9 inches) |
| Wheelbase | 1519 mm (59.8 inches) |
| Fuel capacity | 7.95 litres (2.10 US gallons) |
| Oil capacity | 2.60 litres (2.75 US quarts) |
| Other specifications | |
| Color options | Hard Candy Coloma Gold Flake, Ember Red Sunglo, Big Blue Pearl, Vivid Black |
| Starter | Electric |
| Instruments | 4-inch Speedometer mounted low and integrated into handlebar clamp electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, LED indicator lights |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Harley-Davidson Sportster Forty-Eight discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
