General information |
|
Model name
|

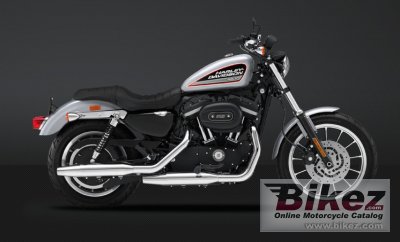

Harley-Davidson Sportster 883 Roadster |
|
Year
|
2013 |
|
Category
|
Custom / cruiser |
| Price as new | Euro 8495. UK £ 6895. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
883.0 ccm (53.88 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
76.2 x 96.8 mm (3.0 x 3.8 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 57/34 ratio |
|
Exhaust system
|
E Type 7 |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.7° |
|
Trail
|
112 mm (4.4 inches) |
|
Front tire
|
100/90-B19 |
|
Rear tire
|
150/80-B16 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Black, 13-Spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
251.0 kg (553.4 pounds) |
|
Weight incl. oil, gas, etc
|
260.0 kg (573.2 pounds) |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2245 mm (88.4 inches) |
|
Ground clearance
|
141 mm (5.6 inches) |
|
Wheelbase
|
1520 mm (59.8 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl |
|
Starter
|
Electric |
|
Light
|
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warnings, security system (optional) |
