Harley-Davidson Sportster 1200 Sport 19961996 Harley-Davidson Sportster 1200 Sport specifications, pictures, reviews and rating |

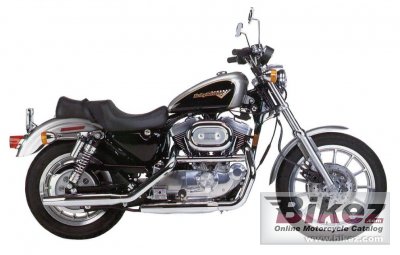

1996 Harley-Davidson Sportster 1200 Sport. Picture submitted by anonymous user.. Submit more pictures.
| General information | |
|---|---|
| Model | Harley-Davidson Sportster 1200 Sport |
| Year | 1996 |
| Category | Custom / cruiser |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1199.0 ccm (73.16 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 59.8 HP (43.6 kW)) @ 5200 RPM |
| Torque | 89.0 Nm (9.1 kgf-m or 65.6 ft.lbs) @ 3500 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 88.8 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Digital |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle, steel |
| Front suspension | Showa telescopic forks, 39mm , preload , compression and rebound adjustable. |
| Rear suspension | Showa Dual shocks, preload , compression and rebound adjustable. |
| Front tire | 80/90-19 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 226.0 kg (498.2 pounds) |
| Weight incl. oil, gas, etc | 240.0 kg (529.1 pounds) |
| Power/weight ratio | 0.2646 HP/kg |
| Seat height | 736 mm (29.0 inches) If adjustable, lowest setting. |
| Wheelbase | 1529 mm (60.2 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-50 |
| Oil filter | K & N PG Black - KN-170 |
| Brake fluid | DOT 5 Silicone |
| Battery | YTX20HL-BS |
| Spark plugs | NGK DCPR7E, NGK DCPR7EIX |
| Idle speed | 1000 RPM |
| Belt teeth | 128 |
| Belt width | 1 1/8 in |
| Pulley teeth | 29/61 (front/rear) |
| Fork tube size | 39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 96 Harley-Davidson Sportster 1200 Sport discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1996 Harley-Davidson Sportster 1200 Sport for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Offroad capabilities for the 1996 Harley-Davidson Sportster 1200 Sport:  (52.4 out of 100)Click here for complete rating. |
|
