General information |
---|

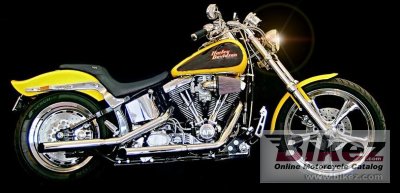

Model | Harley-Davidson Softail Standard |
Year | 1999 |
Category | Custom / cruiser |
Price as new | US$ 12995. MSRP depends on country, taxes, accessories, etc. |
Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 1340.0 ccm (81.77 cubic inches) |
Engine type | V2, four-stroke |
Power | 56.0 HP (40.9 kW)) @ 5000 RPM |
Torque | 116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) |
Top speed | 150.0 km/h (93.2 mph) |
Compression | 8.9:1 |
Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
Valves per cylinder | 2 |
Fuel system | Carburettor |
Fuel control | Overhead Valves (OHV) |
Ignition | Single-fire, non-wasted, map-controlled spark ignition |
Lubrication system | Dry sump |
Cooling system | Air |
Gearbox | 5-speed |
Transmission type | Belt (final drive) |
Clutch | Wet 9-plate |
Chassis, suspension, brakes and wheels |
---|
Rake (fork angle) | 34.0° |
Trail | 127 mm (5.0 inches) |
Front suspension | 41.3 mm telescopic, |
Rear suspension | Hidden, horizontal-mounted, coil-over shock |
Front brakes | Single disc. Four-piston calipers. |
Diameter | 292 mm (11.5 inches) |
Rear brakes | Single disc |
Diameter | 292 mm (11.5 inches) |
Physical measures and capacities |
---|
Dry weight | 271.0 kg (597.5 pounds) |
Weight incl. oil, gas, etc | 302.4 kg (666.7 pounds) |
Power/weight ratio | 0.2066 HP/kg |
Seat height | 720 mm (28.3 inches) If adjustable, lowest setting. |
Overall length | 2410 mm (94.9 inches) |
Ground clearance | 140 mm (5.5 inches) |
Wheelbase | 1690 mm (66.5 inches) |
Fuel capacity | 19.70 litres (5.20 US gallons) |
Oil capacity | 2.80 litres (2.96 US quarts) |
Other specifications |
---|
Starter | Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
---|
Engine oil | SAE 20W-50 |
Brake fluid | DOT 5 Silicone |
Idle speed | 1000 +/- 50 RPM |
Tire pressure front | 30 PSI (2.1 Bar or 210 kPa) |
Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
*) Always verify maintenance and service data with the bike owner's manual. |
