Harley-Davidson Softail Fat Boy Special 20132013 Harley-Davidson Softail Fat Boy Special specifications, pictures, reviews and rating |

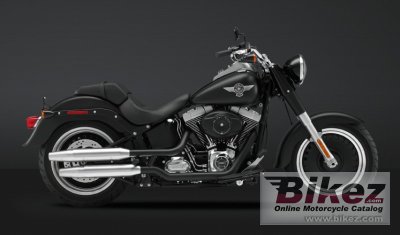

2013 Harley-Davidson Softail Fat Boy Special. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| It shows a darker side of the original ´fat custom´ bike—laid-back and blacked-out with an unmistakable profile on the road. But the nostalgic style isn´t just about the confident stance, paint and old-school detail. It´s how you look riding it. It´s how it feels. It´s the classic, relaxed riding position that speaks volumes. You´re not just cruising. You´re in charge—kicked back on a throne of machined metal surveying your domain. |
| General information | |
|---|---|
| Model name | Harley-Davidson Softail Fat Boy Special |
| Year | 2013 |
| Category | Custom / cruiser |
| Price as new | Euro 20445. UK £ 16095. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 1690.0 ccm (103.12 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled, Twin Cam 103B™ |
| Torque | 134.0 Nm (13.7 kgf-m or 98.8 ft.lbs) @ 3000 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.1 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary chain, 34/46 ratio |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 31.6° |
| Trail | 147 mm (5.8 inches) |
| Front tire | 140/75-R17 |
| Rear tire | 200/55-R17 |
| Front brakes | Double disc. 4-piston |
| Rear brakes | Single disc. 2-piston |
| Wheels | Black, Bullet Hole Disc Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 313.0 kg (690.0 pounds) |
| Weight incl. oil, gas, etc | 330.0 kg (727.5 pounds) |
| Seat height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Overall length | 2385 mm (93.9 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1630 mm (64.2 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Oil capacity | 3.30 litres (3.49 US quarts) |
| Other specifications | |
| Color options | Anniversary Vintage Bronze/Anniversary Vintage Black, Candy Orange, Black Denim, Vivid Black |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Light | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
