General information |
|
Model name
|

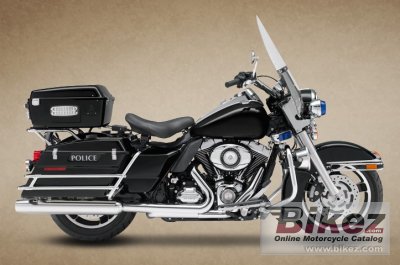

Harley-Davidson Road King Police |
|
Year model
|
2013 |
|
Type
|
Touring |
|
Rating
|
3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1688.0 ccm (103.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate, wet |
|
Driveline
|
Chain, 34/46 ratio primary drive |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3 mm telescopic |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. ABS, 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. ABS, 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, Slotted Disc Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
367.0 kg (809.0 pounds) |
|
Weight incl. oil, gas, etc
|
380.1 kg (838.0 pounds) |
|
Overall length
|
2461 mm (96.9 inches) |
|
Overall width
|
930 mm (36.6 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1626 mm (64.0 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Reserve fuel capacity
|
3.79 litres (1.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Electrical
|
Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca (per Battery Council International Rating) battery. |
|
Light
|
Quartz halogen, 55-watt low beam, 60-watt high beam headlamp. |
|
Carrying capacity
|
Saddle bags. Top box. |
|
Factory warranty
|
24 months unlimited milage |
|
Comments
|
Bead-retention tires designed to remain on wheel during sudden loss of pressure; sealed, automotive-style wheel bearings requiring no end play adjustments and service interval of 100,000 miles (160,000 km). |
