General information |
|
Model name
|

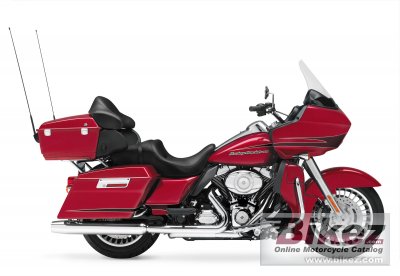

Harley-Davidson Road Glide Ultra |
|
Year
|
2013 |
|
Category
|
Touring |
| Price as new | US$ 22799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1688.0 ccm (103.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Twin Cam 103™ |
|
Torque
|
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Chain, 34/46 ratio primary drive |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, 2-1-2 dual exhaust with tapered mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front tire
|
130/80-17 |
|
Rear tire
|
180/65-16 |
|
Front brakes
|
Double disc. 4-piston |
|
Rear brakes
|
Single disc. 2-piston |
|
Wheels
|
Black, 28-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
400.1 kg (882.0 pounds) |
|
Weight incl. oil, gas, etc
|
413.2 kg (911.0 pounds) |
|
Seat height
|
693 mm (27.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2507 mm (98.7 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Candy Orange with Pale Gold Pinstripes, Vivid Black with Medium Silver Pinstripes, Big Blue Pearl with Blue Pinstripes, Black Denim with Medium Red Pinstripes |
|
Instruments
|
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
|
Light
|
High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warning, cruise control, ABS |
|
Comments
|
Windshield. |
