General information |
|
Model name
|

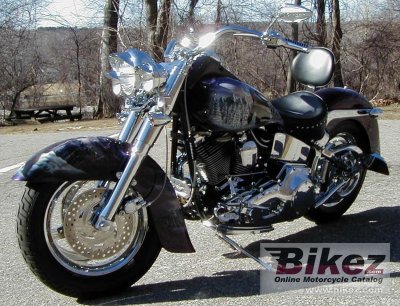

Harley-Davidson Heritage Softail Classic |
|
Year of manufacture
|
1999 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1340.0 ccm (81.77 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
56.0 HP (40.9 kW)) @ 5000 RPM |
|
Torque
|
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3500 RPM |
|
Top speed
|
150.0 km/h (93.2 mph) |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Optional injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on oil filter |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
Telescopic forks, with beer can covers |
|
Rear suspension
|
Dual down-tubes Swing Arm Triangular hard tail |
|
Front tire
|
MT90-B16 |
|
Rear tire
|
150/80-B16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
316.8 kg (698.4 pounds) |
|
Weight incl. oil, gas, etc
|
337.0 kg (743.0 pounds) |
|
Power/weight ratio
|
0.1768 HP/kg |
|
Seat height
|
670 mm (26.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2400 mm (94.5 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1623 mm (63.9 inches) |
|
Fuel capacity
|
15.90 litres (4.20 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Brake fluid
|
DOT 5 Silicone |
|
Spark plugs
|
NGK BPR5ES-11 |
|
Idle speed
|
1000 +/- 50 RPM |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
