Harley-Davidson FXSTSI Springer Softail 20042004 Harley-Davidson FXSTSI Springer Softail specifications, pictures, reviews and rating |

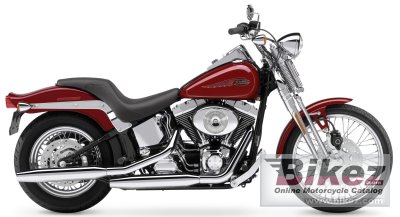

2004 Harley-Davidson FXSTSI Springer Softail. Picture credits - Harley-Davidson. Submit more pictures.
| General information | |
|---|---|
| Model name | Harley-Davidson FXSTSI Springer Softail |
| Year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1449.0 ccm (88.42 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 135 mm (5.3 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 302.0 kg (665.8 pounds) |
| Seat height | 640 mm (25.2 inches) If adjustable, lowest setting. |
| Overall length | 2375 mm (93.5 inches) |
| Ground clearance | 137 mm (5.4 inches) |
| Wheelbase | 1660 mm (65.4 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Other specifications | |
| Color options | Vivid black, sierra red, impact blue, luxury blue, lava red sunglo, two-tone impact blue and vivid black, two-tone luxury teal and brilliant silver |
| Comments | Black powder-coated engine with chrome covers; chrome Springer front forks; Badlander style seat; chrome tank console, rear fender supports, air cleaner, and oil tank; new low-rise handlebars; bobtail fender |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Harley-Davidson FXSTSI Springer Softail discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 Harley-Davidson FXSTSI Springer Softail discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Harley-Davidson bike | |
Reliability for the 2004 Harley-Davidson FXSTSI Springer Softail:  (92.4 out of 100)Click here for complete rating. |
|
