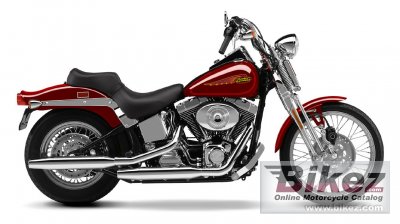

2002 Harley-Davidson FXSTS Springer Softail. Picture by Harley-Davidson. Published with permission..
Submit more pictures.
|
|
|
General information |
|
Model name
|
Harley-Davidson FXSTS Springer Softail |
|
Year of manufacture
|
2002 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1450.0 ccm (88.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 3200 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
296.3 kg (653.2 pounds) |
|
Seat height
|
654 mm (25.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2372 mm (93.4 inches) |
|
Ground clearance
|
137 mm (5.4 inches) |
|
Wheelbase
|
1659 mm (65.3 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Reserve fuel capacity
|
1.90 litres (0.50 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Harley-Davidson FXSTS Springer Softail discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Design and look for the 2002 Harley-Davidson FXSTS Springer Softail:
 (95.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
