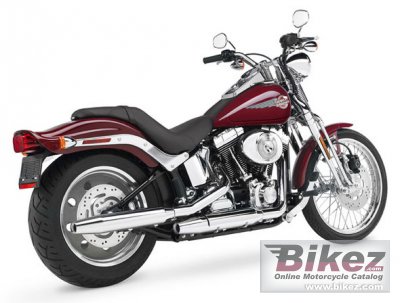

2006 Harley-Davidson FXSTS Softail Springer. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Model
|
Harley-Davidson FXSTS Softail Springer |
|
Year
|
2006 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 17145. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1442.2 ccm (88.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
5.11 litres/100 km (19.6 km/l or 46.03 mpg) |
|
Greenhouse gases
|
118.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
135 mm (5.3 inches) |
|
Front tire
|
MH90-21 |
|
Rear tire
|
200/55-R17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
304.4 kg (671.0 pounds) |
|
Weight incl. oil, gas, etc
|
314.8 kg (694.0 pounds) |
|
Overall length
|
2375 mm (93.5 inches) |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1661 mm (65.4 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry, chopper blue, rich sunglo blue, brandy wine sunglo, two-tone chopper blue and brilliant silver, two-tone black cherry and black pearl
|
