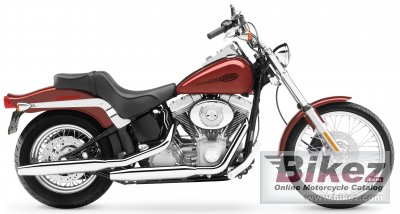

2005 Harley-Davidson FXSTI Softail Standard. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| Close your eyes and think of a rebel Harley-There’s only one place this motorcycle won’t go and that’s overboard. Keeping it simple is what this ride’s all about. And by the looks of things, simple is good. Within the clean lines of the Softail® frame lies a silver powder-coated, dual counterbalanced Twin Cam 88B™,TM in carb or EFI. |
|
General information |
|
Model
|
Harley-Davidson FXSTI Softail Standard |
|
Model year
|
2005 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
292.0 kg (643.7 pounds) |
|
Seat height
|
663 mm (26.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2412 mm (95.0 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1695 mm (66.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl |
