Harley-Davidson FXSTI Softail Standard 20042004 Harley-Davidson FXSTI Softail Standard specifications, pictures, reviews and rating |

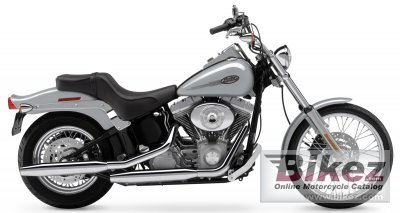

2004 Harley-Davidson FXSTI Softail Standard. Picture credits - Harley-Davidson. Submit more pictures.
| General information | |
|---|---|
| Model name | Harley-Davidson FXSTI Softail Standard |
| Year of manufacture | 2004 |
| Type | Custom / cruiser |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1449.0 ccm (88.42 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 130 mm (5.1 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 292.0 kg (643.7 pounds) |
| Weight incl. oil, gas, etc | 305.0 kg (672.4 pounds) |
| Seat height | 663 mm (26.1 inches) If adjustable, lowest setting. |
| Overall length | 2412 mm (95.0 inches) |
| Ground clearance | 142 mm (5.6 inches) |
| Wheelbase | 1695 mm (66.7 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Oil capacity | 3.30 litres (3.49 US quarts) |
| Other specifications | |
| Color options | Vivid black, brilliant silver, sierra red, impact blue |
| Starter | Electric |
| Comments | Silver powder-coated engine and covers; hardtail styling with hidden horizontal rear shocks; black horseshoe oil tank; bobtail fender; raked front forks |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 20W-50 |
| Spark plugs | NGK DCPR7E, NGK DCPR7EIX |
| Idle speed | 1000 RPM |
| Tire pressure front | 29 PSI (2 Bar or 200 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
