General information |
|
Model
|

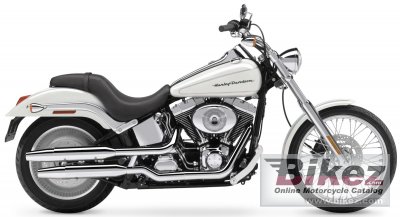

Harley-Davidson FXSTDI Softail Deuce |
|
Year model
|
2004 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
127 mm (5.0 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
160/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
292.0 kg (643.7 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2424 mm (95.4 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1690 mm (66.5 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, sierra red, impact blue, glacier white pearl, lava red sunglo, two-tone luxury blue and impact blue, two-tone luxury teal and brilliant silver, two-tone smokey gold and vivid black
|
|
Comments
|
Black powder-coated engine with chrome covers; stretched tank; chrome front forks; chrome risers with low-rise handlebars; chrome fender supports with hidden hardware; full-length chrome tank console; wire-laced front wheel, 432 mm disc rear wheel; Badlander style seat; 160mm wide rear tyre
|
