General information |
|
Motorcycle name
|

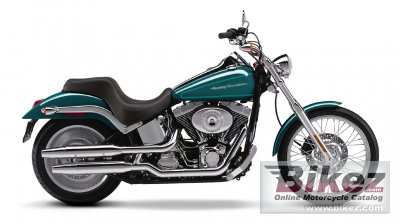

Harley-Davidson FXSTDI Softail Deuce |
|
Year
|
2002 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 16555. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1450.0 ccm (88.48 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
62.6 HP (45.7 kW)) |
|
Torque
|
106.0 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 3500 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump |
|
Cooling system
|
Air |
|
Clutch
|
Front: |
|
Driveline
|
Front: |
|
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
|
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
127 mm (5.0 inches) |
|
Front suspension
|
41.3 mm telescopic, beer can covers |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over shock |
|
Front tire
|
MH90-21 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
292.7 kg (645.3 pounds) |
|
Weight incl. oil, gas, etc
|
309.6 kg (682.6 pounds) |
|
Power/weight ratio
|
0.2140 HP/kg |
|
Seat height
|
719 mm (28.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2422 mm (95.4 inches) |
|
Ground clearance
|
141 mm (5.5 inches) |
|
Wheelbase
|
1690 mm (66.5 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Reserve fuel capacity
|
1.90 litres (0.50 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N 171B |
|
Brake fluid
|
DOT 5 Silicone |
|
Battery
|
GYZ20HL |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Idle speed
|
1000 RPM |
|
Sprockets
|
32/70 (front/rear) |
|
Belt teeth
|
135 |
|
Belt width
|
1 1/8 |
|
Pulley teeth
|
32/70 (front/rear) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
