General information |
|
Model name
|

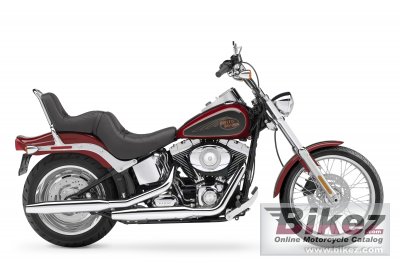

Harley-Davidson FXSTC Softail Custom |
|
Year
|
2007 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 16895. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1573.3 ccm (96.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
119.2 Nm (12.2 kgf-m or 87.9 ft.lbs) @ 2750 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
|
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular, rectangular section backbone |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
127 mm (5.0 inches) |
|
Front suspension
|
41.3 mm telescopic, chrome dust covers |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over shock |
|
Front tire
|
MH90-21 |
|
Rear tire
|
200/55-R17 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
304.8 kg (672.0 pounds) |
|
Weight incl. oil, gas, etc
|
318.9 kg (703.0 pounds) |
|
Seat height
|
719 mm (28.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2400 mm (94.5 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, fire red pearl, deep cobalt pearl, two-tone suede blue pearl and vivid black (new), two-tone black cherry pearl and pewter pearl (new), two-tone fire red pearl and black pearl (new), two-tone deep cobalt pearl and pewter pearl (new), two-tone |
|
Starter
|
Electric |
