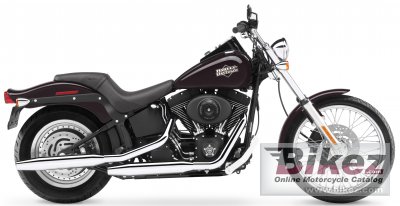

2005 Harley-Davidson FXSTBI Softail Night Train. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| One glimpse of a Night Train® approaching is enough to send shivers up your spine. Must be the wicked blacked-out look. Black tank console. Black rear fender supports. Black air cleaner cover. Black oil tank. Black powder-coated, counterbalanced Twin Cam 88B™ engine, in carb or EFI, with wrinkle and black covers, of course. |
|
General information |
|
Model name
|
Harley-Davidson FXSTBI Softail Night Train |
|
Year model
|
2005 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
292.0 kg (643.7 pounds) |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2420 mm (95.3 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1695 mm (66.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry pearl, black pearl |
|
Comments
|
Black powder-coated engine with wrinkle black and texture black covers; laced front wheel, disc rear wheel ;Badlander seat; hardtail styling with hidden horizontal rear shocks; drag-style handlebar; black tank console, rear fender supports, air cleaner and oil tank; bobtail fender |
