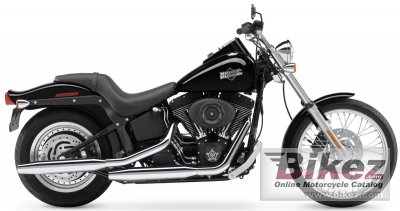

2004 Harley-Davidson FXSTBI Softail Night Train. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| General information |
|---|
| Model: | Harley-Davidson FXSTBI Softail Night Train |
| Year: | 2004 |
| Category: | Custom / cruiser |
| Rating: | 74.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1449.00 ccm (88.42 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
| Compression: | 8.8:1 |
| Bore x stroke: | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 32.0° |
| Trail: | 127 mm (5.0 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 150/80-16 |
| Front brakes: | Single disc |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 292.0 kg (643.7 pounds) |
| Seat height: | 640 mm (25.2 inches) If adjustable, lowest setting. |
| Overall length: | 2,420 mm (95.3 inches) |
| Ground clearance: | 142 mm (5.6 inches) |
| Wheelbase: | 1,695 mm (66.7 inches) |
| Fuel capacity: | 18.90 litres (4.99 gallons) |
| Other specifications |
|---|
| Color options: | Vivid black, lava red sunglo
|
| Comments: | Black powder-coated engine with wrinkle black and texture black covers; laced front wheel, disc rear wheel ;Badlander seat; drag-style handlebars; black tank console, rear fender supports, air cleaner and oil tank; bobtail fender; Electronic Sequential Port Fuel Injection (ESPFI) as alternative to carburetor |
