General information |
|
Model
|

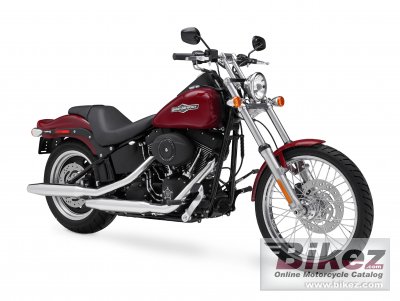

Harley-Davidson FXSTB Softail Night Train |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multiplate |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; rectangular section backbone; |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
127 mm (5.0 inches) |
|
Front suspension
|
41.3mm telescopic fork |
|
Front wheel travel
|
142 mm (5.6 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Front tire
|
MT90-21 |
|
Rear tire
|
200/55-R17 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
303.0 kg (668.0 pounds) |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2410 mm (94.9 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1700 mm (66.9 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black, Black Pearl, Black Denim, Red Hot Sunglo |
|
Starter
|
Electric |
|
Comments
|
Black powder-coated engine with wrinkle-black treatment covers; Black
“horseshoe” oil tank with chrome external oil lines; Black, nostalgic fuel tank
console; Bullet headlamp; Chrome, isolated riser; Forward-mounted rider
footpegs; Standard passenger footpegs; Stainless steel, drag-style handlebars;
One-piece, two-up Badlander™ seat;“ape-hanger” handlebar; Gloss black console with cat-eye indicators; Rider
adjusted, two-position, sprung solo seat; Tribal pinstripe graphics on fuel tank
and fenders; Nostalgic patent badge on oil tank; Gloss black, oval air cleaner
cover; Half moon floorboards with heel/toe shifter; New Willie G. signed skull
graphics on the oil tankoil tank with chrome external oil lines; Chrome, bullet headlamp; Standard
passenger footpegs; Chrome auxiliary lamps; New quick detachable king-size
Lexan windshield; New 1940’s-style leather saddlebags with quick opening
buckles; New passenger seat; New passenger backrest; New Touring handlebars
with new top clamp and risers; Full FL front fender with new chrome accents;
New two-tone leather tank panel; New Hydra Glide style, chrome nacelle with
horizontal “knuckles”; New “old-school” shaped, stainless steel rider footboards
and brake paddle |
|
Modifications compared to previous model
|
New low-profile front fender |
