General information |
|
Model
|

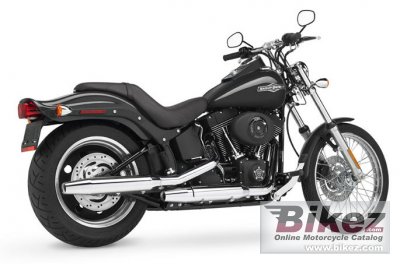

Harley-Davidson FXSTB Night Train |
|
Year of manufacture
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 15445. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1442.2 ccm (88.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Fuel consumption
|
5.11 litres/100 km (19.6 km/l or 46.03 mpg) |
|
Greenhouse gases
|
118.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Front tire
|
MH90-21 |
|
Rear tire
|
200/55-R17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
295.3 kg (651.0 pounds) |
|
Weight incl. oil, gas, etc
|
309.3 kg (682.0 pounds) |
|
Seat height
|
701 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2413 mm (95.0 inches) |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1699 mm (66.9 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black cherry, black pearl
|
|
Comments
|
New fatter 200mm rear tire; new sculpted bobtail fender. Silver cast mag rear wheel with color-matched rear sprocket. Drag-style, flat handlebar. Blacked-out tank console, rear fender supports, air cleaner and oil tank.
|
