General information |
|
Motorcycle name
|

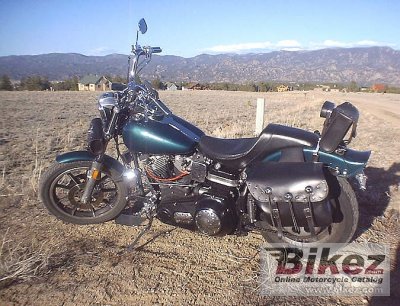

Harley-Davidson FXS 1340 Low Rider |
|
Year of manufacture
|
1981 |
|
Type
|
Sport touring |
|
Rating
|
3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1337.0 ccm (81.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
67.0 HP (48.9 kW)) @ 5800 RPM |
|
Torque
|
90.8 Nm (9.3 kgf-m or 67.0 ft.lbs) @ 3600 RPM |
|
Top speed
|
165.0 km/h (102.5 mph) |
|
Compression
|
7.4:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Coil battery |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel, double cradle frame |
|
Front suspension
|
Telehydraulic forks |
|
Rear suspension
|
Dual shocks swinging arm fork |
|
Front tire
|
MT90-19 |
|
Rear tire
|
MT90-16 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
289.0 kg (637.1 pounds) |
|
Weight incl. oil, gas, etc
|
289.0 kg (637.1 pounds) |
|
Power/weight ratio
|
0.2318 HP/kg |
|
Seat height
|
685 mm (27.0 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
