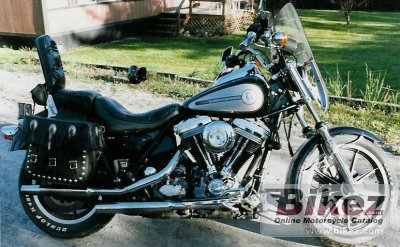

1986 Harley-Davidson FXRS 1340 Low Rider Sport Edition. Picture credits - JIM CONNELLY.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FXRS 1340 Low Rider Sport Edition |
|
Year of manufacture
|
1986 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1337.0 ccm (81.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
58.0 HP (42.3 kW)) @ 5000 RPM |
|
Top speed
|
167.0 km/h (103.8 mph) |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
MJ 90-19 |
|
Rear tire
|
MT 90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
278.0 kg (612.9 pounds) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
