General information |
|
Model name
|

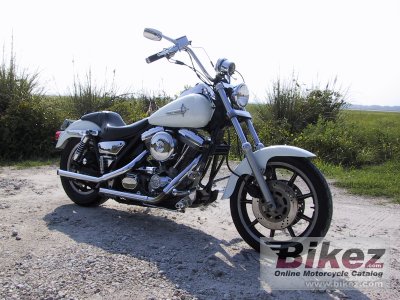

Harley-Davidson FXR 1340 Super Glide |
|
Year model
|
1990 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1337.0 ccm (81.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
49.0 HP (35.8 kW)) @ 5000 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiple discs, cable operated |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle |
|
Front suspension
|
Cartridge fork |
|
Rear suspension
|
Twin shock, Swingarm |
|
Front tire
|
90/90-R19 |
|
Rear tire
|
90/90-R16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
276.0 kg (608.5 pounds) |
|
Seat height
|
711 mm (28.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2393 mm (94.2 inches) |
|
Wheelbase
|
1643 mm (64.7 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
