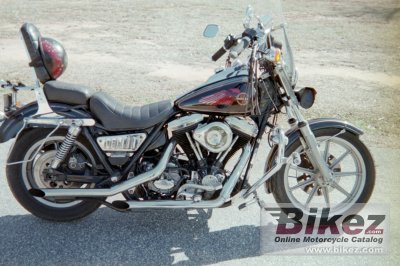

1986 Harley-Davidson FXR 1340 Super Glide. Picture submitted by anonymous user..
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FXR 1340 Super Glide |
|
Model year
|
1986 |
|
Category
|
Touring |
|
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1337.0 ccm (81.58 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
58.0 HP (42.3 kW)) @ 5000 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
MJ 90-19 |
|
Rear tire
|
MT 90-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
276.0 kg (608.5 pounds) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 86 Harley-Davidson FXR 1340 Super Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Reliability for the 1986 Harley-Davidson FXR 1340 Super Glide:
 (82.6 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
