General information |
|
Motorcycle name
|

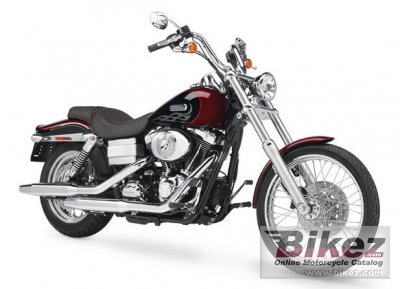

Harley-Davidson FXDWGI Dyna Wide Glide |
|
Model year
|
2006 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 16620. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1442.2 ccm (88.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Vibration-isolated twin Cam 88 pushrod-operated, overhead valves with hydraulic, self-adjusting lifters |
|
Torque
|
115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. ESPFI |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multi-plate |
|
Fuel consumption
|
5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
|
Greenhouse gases
|
116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
130 mm (5.1 inches) |
|
Front suspension
|
49 mm w/polished aluminum fork triple clamp and dual-rate springs |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Rear wheel travel
|
104 mm (4.1 inches) |
|
Front tire
|
MH90-21 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc. 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston |
|
Diameter
|
295 mm (11.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
294.8 kg (650.0 pounds) |
|
Weight incl. oil, gas, etc
|
307.5 kg (678.0 pounds) |
|
Overall length
|
2477 mm (97.5 inches) |
|
Ground clearance
|
157 mm (6.2 inches) |
|
Wheelbase
|
1735 mm (68.3 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, black cherry, black pearl, chopper blue, deep cobalt, glacier white pearl, yellow pearl, brandy wine sunglo, two-tone rich sunglo blue and chopper blue, two-tone black cherry and black pearl, two-tone fire red pearl and vivi |
|
Starter
|
Electric |
|
Comments
|
Black powder-coated engine with chrome covers. Wide, raked-out front fork. 21 in. laced front wheel. Ape-hanger handlebar internally wired. New bobtail fender. |
