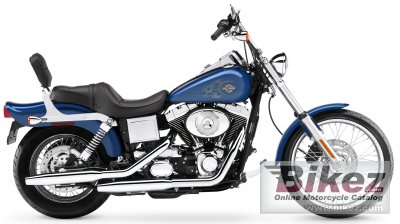

2005 Harley-Davidson FXDWGI Dyna Wide Glide. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| Close your eyes and think of a rebel Harley-Davidson® motorcycle. Odds are good this one instantly comes to mind. The Dyna Wide Glide®. It’s pure custom, through and through. The factory ape hangers are a throwback to the tricked-out choppers of the ’70s. Grab hold and the road to Nowheresville calls your name. You’ll ride laid back on a custom stepped seat, boots stretched out to the forward foot controls. |
|
General information |
|
Motorcycle name
|
Harley-Davidson FXDWGI Dyna Wide Glide |
|
Year of manufacture
|
2005 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Hydraulic lifter, pushrod actuation. |
|
Output
|
67.0 HP (48.9 kW)) @ 5200 RPM |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Front tire
|
MH90-21 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Power/weight ratio
|
0.2310 HP/kg |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2340 mm (92.1 inches) |
|
Ground clearance
|
117 mm (4.6 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
17.40 litres (4.60 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue pearl, two-tone sierra red pearl and brilliant silver pearl, two-tone smokey gold |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Harley-Davidson FXDWGI Dyna Wide Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Engine performance for the 2005 Harley-Davidson FXDWGI Dyna Wide Glide:
 (86.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
