Harley-Davidson FXDWGI Dyna Wide Glide 20042004 Harley-Davidson FXDWGI Dyna Wide Glide specifications, pictures, reviews and rating |

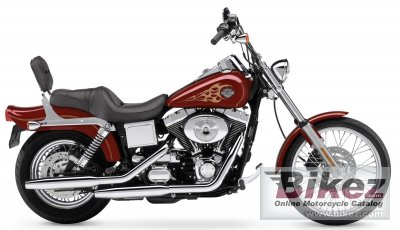

2004 Harley-Davidson FXDWGI Dyna Wide Glide. Picture credits - Harley-Davidson. Submit more pictures.
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson FXDWGI Dyna Wide Glide |
| Year model | 2004 |
| Type | Custom / cruiser |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1449.0 ccm (88.42 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Trail | 130 mm (5.1 inches) |
| Front tire | 90/90-21 |
| Rear tire | 150/80-16 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 295.0 kg (650.4 pounds) |
| Seat height | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Overall length | 2365 mm (93.1 inches) |
| Ground clearance | 137 mm (5.4 inches) |
| Wheelbase | 1665 mm (65.6 inches) |
| Fuel capacity | 19.30 litres (5.10 US gallons) |
| Other specifications | |
| Color options | Vivid black, brilliant silver, luxury teal, real red, impact blue, glacier white pearl, lava red sunglo, two-tone luxury blue and impact blue, two-tone luxury teal and brilliant silver, two-tone sierra red and brilliant silver |
| Comments | Black powder-coated engine with chrome covers; wide, raked-out front fork; ape-hanger handle-bars; bobtail fender; stepped, chopper seat; forward foot controls; chromed sissy bar and backrest; large, tank-mounted speedometer |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Harley-Davidson FXDWGI Dyna Wide Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Harley-Davidson FXDWGI Dyna Wide Glide or advertise any other MC for sale. You can list all 2004 Harley-Davidson FXDWGI Dyna Wide Glide available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this Harley-Davidson bike | |
Racing track capabilities for the 2004 Harley-Davidson FXDWGI Dyna Wide Glide:  (45.3 out of 100)Click here for complete rating. |
|
