| General information |
|---|

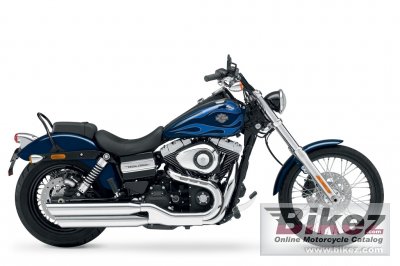

| Model | Harley-Davidson FXDWG Dyna Wide Glide |
| Year | 2012 |
| Category | Custom / cruiser |
| Price as new | US$ 14849. Euro 15495. UK £ 12099. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 1688.0 ccm (103.00 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled, Twin Cam 103™. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
| Torque | 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3500 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressurized, dry-sump |
| Cooling system | Air |
| Gearbox: | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio. |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Rake (fork angle) | 34.0° |
| Trail | 132 mm (5.2 inches) |
| Front suspension | 49 mm with polished aluminum fork triple clamp and dual-rate springs |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Coil-over shock. Mild steel, rectangular tube sections, stamped junctions; MIG welded swingarm. |
| Rear wheel travel | 79 mm (3.1 inches) |
| Front tire | 80/90-H21 |
| Rear tire | 180/60-B17 |
| Front brakes | Single disc. 4-piston fixed. Optional ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 2-piston torque-free floating. Optional ABS. |
| Diameter | 292 mm (11.5 inches) |
| Wheels | Black, Laced Steel |
| Seat | Low solo seat with separate passenger pillion |
| Physical measures and capacities |
|---|
| Dry weight | 294.8 kg (650.0 pounds) |
| Weight incl. oil, gas, etc | 303.0 kg (668.0 pounds) |
| Seat height | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Overall length | 2388 mm (94.0 inches) |
| Ground clearance | 107 mm (4.2 inches) |
| Wheelbase | 1735 mm (68.3 inches) |
| Fuel capacity | 17.79 litres (4.70 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications |
|---|
| Color options | Vivid Black, Vivid Black with Flames, Big Blue Pearl with Flames, Ember Red Sunglo with Flames |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Electrical | Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca |
| Light | 55-watt low beam, 60-watt high beam |
| Factory warranty | 2 years, unlimited mileage. |
