General information |
|
Model
|

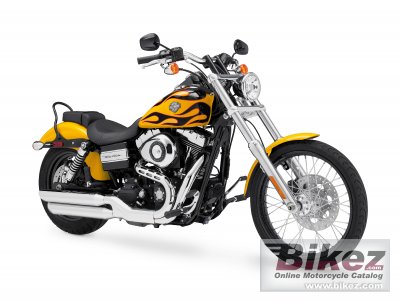

Harley-Davidson FXDWG Dyna Wide Glide |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14499. Euro 14795. UK £ 11490. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1573.3 ccm (96.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 96 |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate, we |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio |
|
Exhaust system
|
Chrome 2-1-2 Tommy Gun exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
130 mm (5.1 inches) |
|
Front suspension
|
49 mm with polished aluminum fork triple clamp and dual-rate springs |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Front tire
|
80/90-21 |
|
Rear tire
|
180/60-B17 |
|
Front brakes
|
Double disc. 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Black, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
293.5 kg (647.0 pounds) |
|
Weight incl. oil, gas, etc
|
301.6 kg (665.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2387 mm (94.0 inches) |
|
Ground clearance
|
107 mm (4.2 inches) |
|
Wheelbase
|
1735 mm (68.3 inches) |
|
Fuel capacity
|
17.79 litres (4.70 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Vivid Black with Flames,
Chrome Yellow with Flames, Sedona Orange with Flames |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed ind |
|
Electrical
|
Sealed, maintenance-free, 12V battery. |
|
Factory warranty
|
24 months unlimited mileage (US) |
