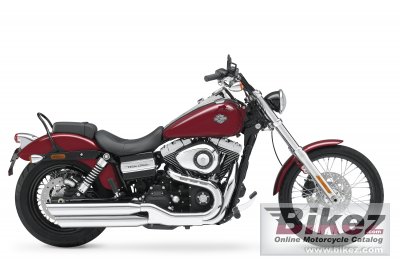

2010 Harley-Davidson FXDWG Dyna Wide Glide. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
|
General information |
|
Motorcycle name
|
Harley-Davidson FXDWG Dyna Wide Glide |
|
Year of manufacture
|
2010 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1573.3 ccm (96.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
Chrome 2-1-2 Tommy Gun exhaust |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
132 mm (5.2 inches) |
|
Front tire
|
80/90-21 |
|
Rear tire
|
180/60-B17 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
293.5 kg (647.0 pounds) |
|
Weight incl. oil, gas, etc
|
301.6 kg (665.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2387 mm (94.0 inches) |
|
Ground clearance
|
107 mm (4.2 inches) |
|
Fuel capacity
|
17.79 litres (4.70 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Red Hot Sunglo |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson FXDWG Dyna Wide Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Racing track capabilities for the 2010 Harley-Davidson FXDWG Dyna Wide Glide:
 (40.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
