General information |
|
Model name
|

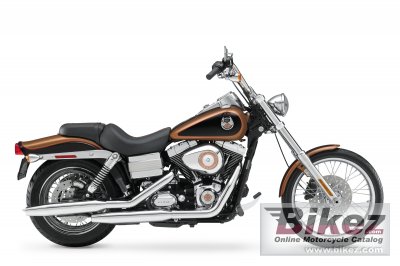

Harley-Davidson FXDWG Dyna Wide Glide |
|
Year of manufacture
|
2008 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 17620. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1573.3 ccm (96.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
|
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty exhaust w/ dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
34.0° |
|
Trail
|
130 mm (5.1 inches) |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Rear brakes
|
Single disc. 2-piston torque-free calipers |
|
Physical measures and capacities |
|
Dry weight
|
294.8 kg (650.0 pounds) |
|
Weight incl. oil, gas, etc
|
307.5 kg (678.0 pounds) |
|
Seat height
|
724 mm (28.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2477 mm (97.5 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1735 mm (68.3 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Other specifications |
|
Color options
|
105th Anniversary Copper Pearl/Vivid Black |
|
Starter
|
Electric |
|
Comments
|
Wide, raked-out front fork(34°) with 49mm fork tubes; 1-¼´ ape-hanger handlebar internally wired (clean front-end look); bobtail fender; stepped, chopper seat; forward-mounted foot controls; 21-in. laced front wheel; large, tank-mounted speedometer; for 2008, presented in serialized, limited-edition 105th Anniversary styling |
