General information |
|
Model name
|

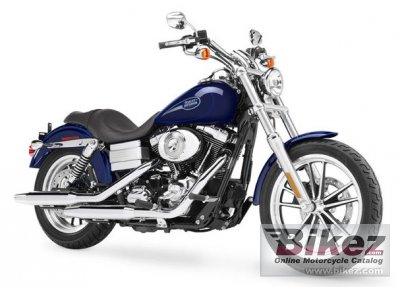

Harley-Davidson FXDLI Dyna Low Rider |
|
Year of manufacture
|
2006 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 15620. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1442.2 ccm (88.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 88. Pushrod-operated overhead valves, 45 degree V-twin |
|
Output
|
67.0 HP (48.9 kW)) @ 5200 RPM |
|
Torque
|
115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
Telescopic fork, 39 mm |
|
Rear suspension
|
Coil-over dual shocks |
|
Front tire
|
100/90-19 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.8 kg (641.0 pounds) |
|
Weight incl. oil, gas, etc
|
304.8 kg (672.0 pounds) |
|
Power/weight ratio
|
0.2304 HP/kg |
|
Seat height
|
655 mm (25.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2365 mm (93.1 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1641 mm (64.6 inches) |
|
Fuel capacity
|
17.78 litres (4.70 US gallons) |
|
Oil capacity
|
2.50 litres (2.64 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, black pearl, chopper blue, fire red pearl, deep cobalt, glacier white pearl, two-tone rich sunglo blue and chopper blue, two-tone fire red pearl and vivid black, two-tone deep cobalt and brilliant silver, dragonfly green
|
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N KN-171B (black) |
|
Brake fluid
|
DOT 4 |
|
Battery
|
YTX20HL-BS |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Belt teeth
|
133 |
|
Belt width
|
1 1/8 in |
|
Pulley teeth
|
32/70 (front/rear) |
|
Fork tube size
|
49 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
