General information |
|
Model name
|

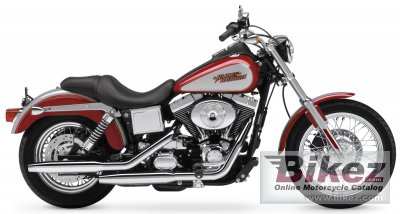

Harley-Davidson FXDLI Dyna Low Rider |
|
Model year
|
2004 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
|
Top speed
|
160.0 km/h (99.4 mph) |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
6.50 litres/100 km (15.4 km/l or 36.19 mpg) |
|
Greenhouse gases
|
150.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
130 mm (5.1 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-B16 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2340 mm (92.1 inches) |
|
Overall width
|
673 mm (26.5 inches) |
|
Ground clearance
|
116 mm (4.6 inches) |
|
Wheelbase
|
1595 mm (62.8 inches) |
|
Fuel capacity
|
17.40 litres (4.60 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, sierra red, impact blue, luxury blue, glacier white pearl, lava red sunglo, two-tone luxury blue and impact blue, two-tone sierra red and brilliant silver, two-tone smokey gold and vivid black |
|
Starter
|
Electric |
|
Comments
|
640 mm seat height (689 mm unladen); black powder-coated engine with chrome covers; low-profile suspension; low-slung custom seat; raked-out front fork; low-rise handle-bars; mid-mount foot controls; tank-mounted speedometer and tachometer; Electronic Sequential Port Fuel Injection (ESPFI) as alternative to carburetor |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Harley-Davidson FXDLI Dyna Low Rider discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Touring capabilities for the 2004 Harley-Davidson FXDLI Dyna Low Rider:
 (79.6 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
