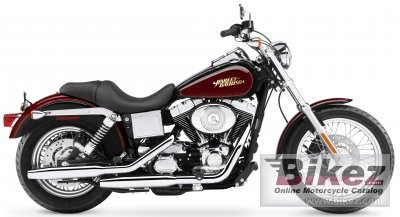

2005 Harley-Davidson FXDLI Dyna Glide Low Rider. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| The Low Rider® model takes to the street as long, low and restless as ever. The profile is unmistakable, beginning up front with the raked-out fork, low-rise pullback handlebar and stretched tank. Downward and to the back, there are frame-mounted highway pegs, mid-mounted foot controls and a fat 150mm rear tire. |
| General information |
|---|
| Model | Harley-Davidson FXDLI Dyna Glide Low Rider |
| Year | 2005 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 1449.0 ccm (88.42 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath |
| Exhaust system | Staggered shorty duals |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle) | 32.0° |
| Front tire | 100/90-19 |
| Rear tire | 150/80-16 |
| Front brakes | Double disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 290.0 kg (639.3 pounds) |
| Seat height | 640 mm (25.2 inches) If adjustable, lowest setting. |
| Overall length | 2340 mm (92.1 inches) |
| Ground clearance | 117 mm (4.6 inches) |
| Wheelbase | 1625 mm (64.0 inches) |
| Fuel capacity | 17.40 litres (4.60 US gallons) |
| Other specifications |
|---|
| Color options | Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue pearl, two-tone sierra red pearl and brilliant silver pearl, two-tone smokey gold |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder | Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Harley-Davidson FXDLI Dyna Glide Low Rider discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Reliability for the 2005 Harley-Davidson FXDLI Dyna Glide Low Rider:
 (90.8 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
